Entrance Protection Systems

Fedon Air Curtain

A high-velocity invisible air barrier for doorways that keeps flies, dust and outside air out — while holding conditioned air in. Engineered for restaurants, pharma, hospitals, retail, cold storage and high-traffic entrances.

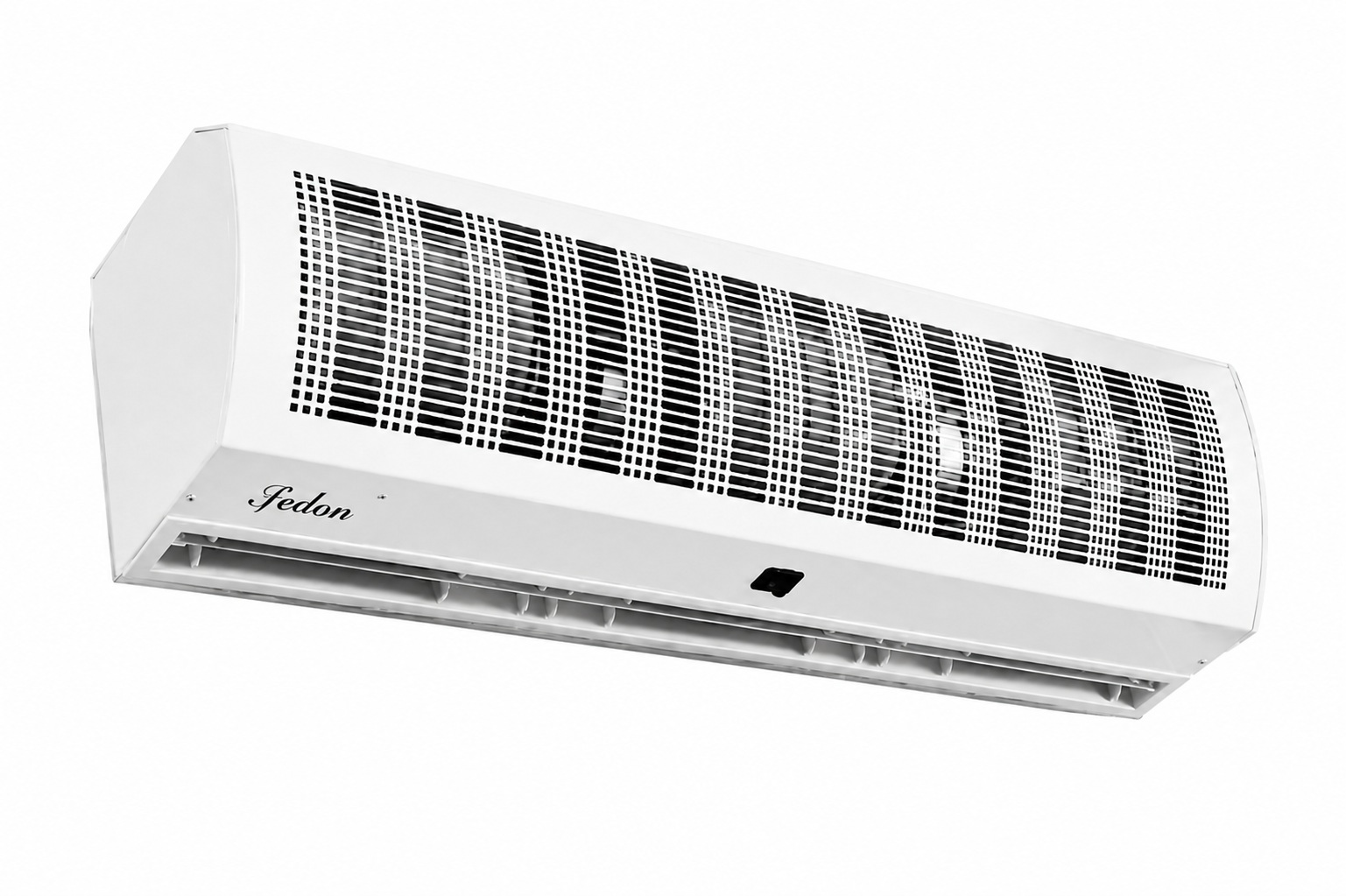

Fedon™ Fedon air curtain — wall-mounted commercial air curtain unit
Commercial & Industrial Air Curtain

An Invisible Wall of Moving Air

The Fedon air curtain mounts above a doorway and projects a continuous, high-velocity stream of air downward — creating an invisible barrier that separates two environments. It keeps flies, dust and outside air out while maintaining temperature and air quality inside.

With air velocity of 18–21 m/s, it is physically impossible for flying insects to penetrate the curtain. Available with or without a door sensor, it cuts HVAC load and AC energy costs while running at less than the volume of normal conversation.

Blocks flies & dust Cuts AC cost 30–50% Quiet < 54 dB Sensor & non-sensor
Request a Quote +91 91881 27442
Simple 3-Step Mechanism

How the Air Curtain Works

Mounted directly above the door frame, the unit drives a controlled jet of air across the entire opening — sealing the doorway without ever closing it.

Activate
The sensor model switches on the instant the door opens; the standard model runs continuously while powered — ready the moment the entrance is in use.
Blast
Centrifugal blowers drive a high-velocity air stream of 18–21 m/s straight down across the doorway, spanning the full width of the opening.
Seal
The moving air forms an invisible wall that flies, dust and outside air cannot cross — while conditioned air stays sealed inside, cutting energy loss.
Why Choose Fedon

Comfort, Hygiene & Energy Savings

Engineered to keep entrances open and welcoming while shutting out pests, dust and wasted energy.

Keeps Insects OutAn 18–21 m/s air wall flying insects simply cannot penetrate.
Lower AC BillsHolds conditioned air in, reducing HVAC load and AC energy costs by 30–50%.
Dust-Free AirBlocks airborne dust and pollutants from drifting in through open doors.
Whisper-QuietOperates below 54 dB — quieter than normal conversation.
Maintenance-FreeSealed, durable design needs no consumables or routine servicing.
Sensor OptionSensor variant runs only when the door opens, maximising energy savings.
Where It's Used

Ideal Applications

Trusted at entrances across hospitality, healthcare, manufacturing and retail wherever pest exclusion, hygiene and climate control matter.

Restaurants & Cafes Pharma & Food Plants Hospitals & Clinics Retail & Supermarkets Cold Storage & Warehouses Hotels & Banquet Halls IT Parks & Offices Cloud Kitchens & Canteens Factory Gates Wedding Halls
Choose Your Door Width

Models & Specifications

Match the curtain length to your door width. All models run on 230V, 50Hz single-phase, mount up to 3 metres above the floor, and are available in sensor and non-sensor variants.

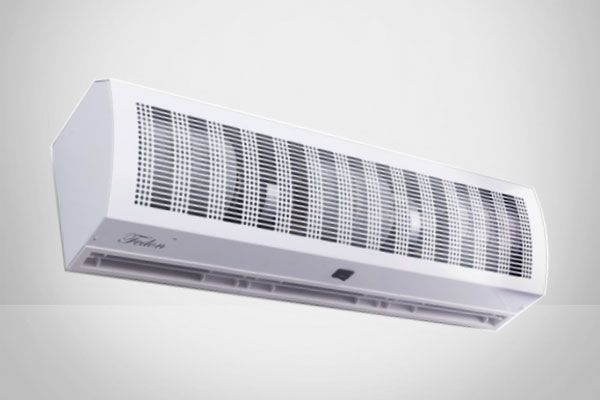

3 ft · 900 mm Fedon 3XLN air curtain
Fedon Air Curtain – 3XLN
900 mm · Powder-Coated Metal

A compact 3-foot unit for standard single doorways in shops, cafes and office entrances.

Dimensions (LBH)900 × 230 × 215 mm
Blowers3 × centrifugal ABS
Motor¼ hp double + 1/6 hp single, 2650 RPM
Air Velocity18–21 m/s
Air Volume2027 m³/h
Power Consumption450W
Voltage230V, 50Hz, Single phase
Noise Level< 54 dB
Weight17.5 kg
Installation Height12–15 ft
4 ft · 1200 mm Fedon 4XLN air curtain
Fedon Air Curtain – 4XLN
1200 mm · Powder-Coated Metal

A 4-foot unit for wider doorways and busier entrances in restaurants and retail outlets.

Dimensions (LBH)1200 × 230 × 215 mm
Blowers4 × centrifugal ABS
Motor2 × ¼ hp double shaft, 2650 RPM
Air Velocity18–21 m/s
Air Volume2027 m³/h
Power Consumption600W
Voltage230V, 50Hz, Single phase
Noise Level< 54 dB
Weight21.5 kg
Installation Height12–15 ft

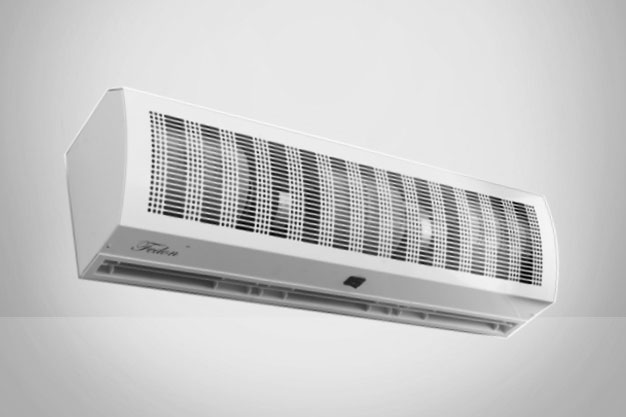

5 ft · 1500 mm Fedon 5XLN air curtain
Fedon Air Curtain – 5XLN
1500 mm · Powder-Coated Metal

A 5-foot unit delivering higher air volume for wide doorways and high-traffic commercial entrances.

Dimensions (LBH)1500 × 230 × 215 mm
Blowers5 × centrifugal ABS
Motor2 × ¼ hp double + 1/6 hp single, 2650 RPM
Air Velocity18–21 m/s
Air Volume2543 m³/h
Power Consumption750W
Voltage230V, 50Hz, Single phase
Noise Level< 55 dB
Weight27 kg
Installation Height12–15 ft

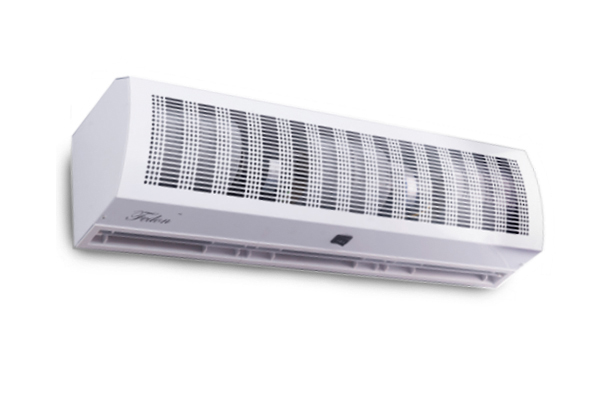

6 ft · 1800 mm Fedon 6XLN aluminium air curtain
Fedon Air Curtain – 6XLN
1800 mm · Aluminium, Powder Coated

The largest unit — an aluminium-bodied 6-foot curtain for the widest industrial gates and warehouse openings.

Dimensions (LBH)1800 × 230 × 215 mm
Blowers6 × centrifugal ABS
Motor3 × ¼ hp double shaft, 2650 RPM
Air Velocity18–20 m/s
Air Volume2900 m³/h
Power Consumption800W
Voltage230V, 50Hz, Single phase
Noise Level< 55 dB
Weight24.5 kg
Installation HeightUp to 12 ft
Need a narrower door covered?
A compact 2XPN (600 mm / ~2 ft, 250W) model is also available for smaller single doorways. Match the curtain length to your door width — and for complete fly control, pair the air curtain with Linnea electric fly traps inside the room.
Sensor Ready Fedon air curtain with door sensor option
Sensor vs. Standard

Smarter Running, Lower Bills

Every Fedon model is available in a sensor or non-sensor variant. The sensor version powers the air stream only when the door opens — ideal for moderate-traffic entrances where it maximises energy savings.

The standard version runs continuously while switched on, the best fit for high-traffic doorways that stay busy throughout the day. Either way, the curtain reduces HVAC load and AC energy costs by 30–50% by sealing conditioned air inside.

Mount inside, above the door frame Up to 3 m mounting height
Good to Know

Frequently Asked Questions

Answers to the most common questions about Fedon industrial air curtains.

What is an industrial air curtain and how does it work?
An industrial air curtain creates a powerful stream of air across a doorway, forming an invisible barrier that helps keep dust, insects, heat, and pollutants from entering while retaining conditioned indoor air.
Who are the best air curtain manufacturers and suppliers in India?
Fedon Air Curtains are trusted by factories, restaurants, hospitals, warehouses, retail stores, and commercial facilities across India for reliable entrance protection and energy efficiency.
What size air curtain do I need for my door or commercial entrance?
The right air curtain depends on the width and height of your doorway. Fedon Air Curtains are available in multiple sizes to suit small entrances, commercial doorways, and large industrial openings.
Do industrial air curtains actually keep flies and insects out?
Yes. Fedon Air Curtains generate air velocities of 18–21 m/s, creating a strong air barrier that helps prevent flies, mosquitoes, and other flying insects from entering through open doors.
What is the difference between a sensor air curtain and a regular air curtain?
A regular air curtain runs continuously, while a sensor air curtain automatically switches on when the door opens and turns off when it closes, helping reduce energy consumption.
How much energy does an industrial air curtain consume and does it save electricity?
Air curtains consume relatively low power and can help reduce energy costs by minimizing the loss of air conditioning or heated air through frequently opened doors.
Which businesses and industries need an air curtain the most?
Air curtains are ideal for restaurants, food processing plants, hospitals, warehouses, retail stores, cold storage facilities, pharmaceutical plants, hotels, and manufacturing units.
Should an air curtain be mounted inside or outside the door?
For best performance, air curtains are typically installed on the inside above the doorway. Installation requirements may vary depending on the building layout and application.
Are Fedon air curtains noisy, and are they suitable for customer-facing spaces?
Fedon Air Curtains are designed for quiet operation and are suitable for customer-facing environments such as restaurants, hotels, retail stores, hospitals, and office entrances.
ENTRANCE PROTECTION EQUIPMENT SUPPLY

Find the Right Air Curtain for Your Doorway

Tell us your door width and traffic and we'll recommend the ideal model, sensor option and mounting. From site assessment and supply to installation, Healthy & Hygiene Associates delivers full-service entrance protection across Kerala, Tamil Nadu and Karnataka.
